PNCTFK

Writer: admin Time:2023-12-14 21:05 Browse:

JAPAN STANDARD RUBBER SHEATHED FLEXIBLE CORD
PNCTFK

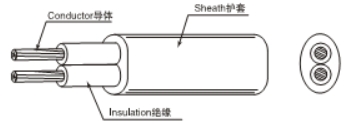

Rubber Insulated and Sheathed Oval Flat Flexible Cords
Rating:300V 60℃
Standard:JIS C 3301

No.of
conductor
导体芯数
Conductor 导体 Insulation
thickness
绝缘厚度
(mm)
Sheath
thickness
护套厚度
(mm)
Overall
diameter
完成外径
(mm)
Max Conductor
resistance at 20℃
20℃时导体电阻最大值
Ω/km
Normal area
标称面积(m㎡)
Construction
结构(NO./mm)
2 0.75 30/0.18 0.6 1.0 4.3±0.2x6.6±0.2
4.3±0.2x6.6±0.2
24.4
1.25 50/0.18 0.6 1.0 4.7±0.2x7.4±0.2
4.7±0.2x7.4±0.2
14.7
2.0 37/0.26 0.6 1.0 5.0±0.2x8.0±0.2 9.5
