HHFF

Writer: admin Time:2023-12-14 21:01 Browse:

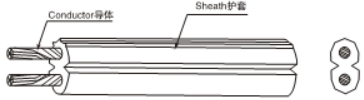

JAPAN STANDARD RUBBER SHEATHED FLEXIBLE CORD
HHFF
Rubber Insulated Flat Flexible Cords
Rating:300V Standard:JIS C 3301

No.of
conductor
导体芯数
Conductor 导体 Insulation
thickness
绝缘厚度
(mm)
Overall
diameter
完成外径
(mm)
Max Conductor
resistance at 20℃
20℃时导体电阻最大值
Ω/km
Normal area
标称面积(m㎡)
Construction
结构(NO./mm)
  0.75 30/0.18 1.0 3.2±0.2x6.4±0.2
3.2±0.2x6.4±0.2
24.4
2 1.25 50/0.18 1.0 3.6±0.2x7.2±0.2 14.7
  2.0 37/0.26 1.0 3.9±0.2x7.8±0.2
3.9±0.2x7.8±0.2
9.5
