No.of conductor 导体芯数 |

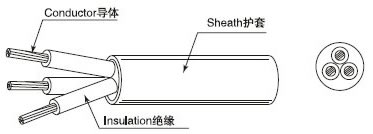

Conductor 导体 |
Insulation thickness 绝缘厚度 (mm) |
Sheath thickness 护套厚度 (mm) |
Overall diameter 完成外径 (mm) |
Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km |
|
|
Normal area 标称面积(m㎡) |
Construction 结构(NO./mm) |
|||||
| 2 | 0.75 | 30/0.18 | 0.6 | 1.0 | 6.6±0.2 | 24.4 |
| 1.25 | 50/0.18 | 0.6 | 1.0 |
7.4±0.2 7.4±0.2 |
14.7 | |
| 2.0 | 37/0.26 | 0.6 | 1.0 | 8.0±0.2 | 9.50 | |
| 3 | 0.75 | 30/0.18 | 0.6 | 1.0 | 7.0±0.2 | 24.4 |
| 1.25 | 50/0.18 | 0.6 | 1.1 | 8.0±0.2 | 14.7 | |
| 2.0 | 37/0.26 | 0.6 | 1.2 | 8.9±0.2 | 9.50 | |
| 4 | 0.75 | 30/0.18 | 0.6 | 1.1 | 7.8±0.2 | 24.4 |
| 1.25 | 50/0.18 | 0.6 | 1.2 | 8.9±0.2 | 14.7 | |
| 2.0 | 37/0.26 | 0.6 | 1.2 | 9.6±0.2 | 9.50 | |
