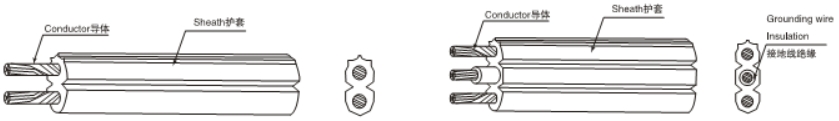

No.of conductor 导体芯数 |
Conductor 导体 |
Insulation thickness 绝缘厚度(mm) |
Overall diameter 完成外径(mm) |
Max Conductor resistance at 20℃ 20℃时导体电阻最大值Q/km |
||
| AWG线规 |
Construction 结构 (NO./mm) |
Bare | Tinned | |||
| 2 | 18 | 41/0.160 | 1.14 | 3.5±0.2x7.0±0.2 | 22.4 | 23.6 |
| 16 | 65/0.160 | 1.14 | 3.8±0.2x7.6±0.2 | 14.1 | 14.9 | |
| 14 | 105/0.160 | 1.52 | 6.5±0.2x11.7±0.3 | 8.88 | 9.34 | |
| 12 | 168/0.160 | 2.41 | 7.9±0.2x13.7±0.4 | 5.58 | 5.88 | |
| 3 | 18 | 41/0.160 | 1.14 | 3.7±0.2x9.0±0.2 | 22.4 | 23.6 |
| 16 | 65/0.160 | 1.14 | 3.9±0.2x10.0±0.3 | 14.1 | 14.9 | |
| 14 | 105/0.160 | 1.52 | 6.5±0.2x13.9±0.4 | 8.88 | 9.34 | |
| 12 | 168/0.160 | 2.41 | 7.9±0.2x16.5±0.5 | 5.58 | 5.88 | |
