SVT SVTO SVTOO SVT-R

Writer： admin Time：2023-12-09 16:41 Browse：℃

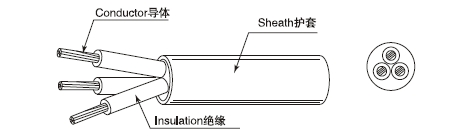

U.S.A AND CAS STANDARD PVC INSULATED FLEXIBLE CORD

PVC Insulated Paraller Flexible Cords

Rating:300V 60 °C~105 °C

Standard:UL62 CSA-C22.2

Specification 规格		Conductor Construction 导体结构No./(mm)	Insulation thickness 绝缘厚度(mm)	Sheath thickness 护套厚度(mm)	Overall diameter 完成外径(mm)	Max Conductor resistance at 20℃ 20℃时导体电阻最大值Ω/km
No.of core 芯数	AWG 线规	Conductor Construction 导体结构No./(mm)	Insulation thickness 绝缘厚度(mm)	Sheath thickness 护套厚度(mm)	Overall diameter 完成外径(mm)	Bare	Tinned
2	18	41/0.160	0.38	0.76	5.8±0.15	22.4	23.6
	17	52/0.160	0.38	0.76	6.0±0.15	17.8	18.7
	16	65/0.160	0.38	0.76	6.4±0.15	14.1	14.9
3	18	41/0.160	0.38	0.76	6.1±0.15	22.4	23.6
	17	52/0.160	0.38	0.76	6.4±0.15	17.8	18.7
	16	65/0.160	0.38	0.76	6.8±0.15	14.1	14.9
