SRDT

Standard: UL 62 Table 6.18 Range and dryer cables.

Maximum voltage: 300V. Rated temperature: 60℃ Conductors material: Soft-annealed copper(7.1 and 7.2).

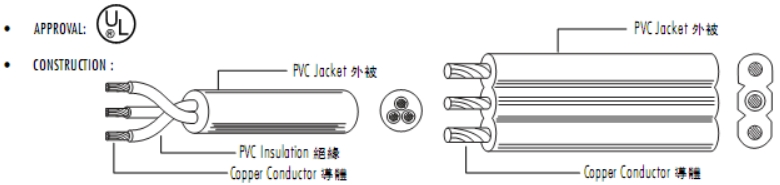

Core wire and jacket material: PVC(60℃ ,90℃ ).

The above cords can all be filled with yarn, paper and wrapped braids.

TYPE 型號	CONDUCTOR(導體)		INSULATION THICKNESS 絕緣厚度(mm)	JACKET THICKNESS 外被厚度(mm)	OVERALL DIAMETER 完成外徑±0.2(mm)
	SIZE 規格	NO./mm 線數/線徑
SRDT	10AWG/2C	41/0.405	1.14	1.52	13.8
	10AWG/3C	41/0.405	1.14	1.52	14.6
	10AWG/4C	41/0.405	1.14	1.52	15.50
	8AWG/2C	65/0.405	1.14	1.52	15.50
	8AWG/3C	65/0.405	1.14	1.52	16.50
	8AWG/4C	65/0.405	1.14	1.52	17.50
	6AWG/2C	105/0.405	1.14	1.52	17.50
	6AWG/3C	105/0.405	1.14	1.52	18.50
	6AWG/4C	105/0.405	1.14	1.52	20.5
	4AWG/2C	165/0.405	1.14	1.52	20.00
	4AWG/3C	165/0.405	1.14	1.52	21.00
	4AWG/4C	165/0.405	1.14	1.52	22.50
SRDT (Flat cord)	10AWG/3C	41/0.405	0	2.54	8.3*20.5
	8AWG/3C	65/0.405	0	2.54	9.2*21.6
	6AWG/3C	105/0.405	0	2.54	10.2*26.3
	4AWG/3C	165/0.405	0	2.54	11.4*29.9
	8AWG/2C+10AWG/1C	65/0.405,41/0.405	0	2.54	9.0*21.5
	6AWG/2C+8AWG/1C	105/0.405,65/0.405	0	2.54	10.2*25.3
	4AWG/2C+6AWG/1C	165/0.405,105/0.405	0	2.54	11.4*28.9
Note: Numeber of circuit conductors 2-4, AWG size of circuit conductors 10-4. Due to O.D. tolerance, The above information is only for reference.
