SJ SJO SJOW SJOO SJOOW
U.S.A. AND CAS STANDARD RUBBER SHEATHED FLEXIBLE CORD

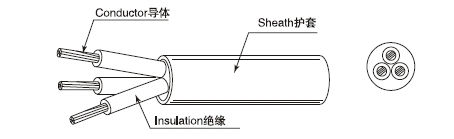

Rubber Insulated and Sheathed Flexible Cords
Rating:300V 60 °C~105 °C
Standard:UL62CSA-C22.2
|
No.of conductor 导体芯数 |
Conductor 导体 |
Insulation thickness 绝缘厚度(mm) |
Sheath thickness 护套厚度(mm) |
Overall diameter 完成外径(mm) |
Max Conductor resistance at 20℃ 20℃时导体电阻最大值Ω/km |
||
| AWG线规 |
Construction 结构 (NO./mm) |
Bare | Tinned | ||||
| 2 | 18 | 41/0.160 | 0.76 | 0.76 | 7.5±0.2 | 22.4 | 23.6 |
| 16 | 65/0.160 | 0.76 | 0.76 | 8.1±0.2 | 14.1 | 14.9 | |
| 14 | 41/0.254 | 0.76 | 0.76 | 8.8±0.2 | 8.88 | 9.34 | |
| 12 | 65/0.254 | 0.76 | 1.14 | 10.8±0.3 | 5.58 | 5.88 | |
| 10 | 104/0.254 | 1.14 | 1.52 | 14.6±0.3 | 3.51 | 3.70 | |
| 3 | 18 | 41/0.160 | 0.76 | 0.76 | 7.9±0.2 | 22.4 | 23.6 |
| 16 | 65/0.160 | 0.76 | 0.76 | 8.6±0.2 | 14.1 | 14.9 | |
| 14 | 41/0.254 | 0.76 | 0.76 | 9.4±0.2 | 8.88 | 9.34 | |
| 12 | 65/0.254 | 0.76 | 1.14 | 11.2±0.3 | 5.58 | 5.88 | |
| 10 | 104/0.254 | 1.14 | 1.52 | 15.4±0.3 | 3.51 | 3.70 | |
| 4 | 18 | 41/0.160 | 0.76 | 0.76 | 8.6±0.2 | 22.4 | 23.6 |
| 16 | 65/0.160 | 0.76 | 0.76 | 9.2±0.2 | 14.1 | 14.9 | |
| 14 | 41/0.254 | 0.76 | 0.76 | 10.3±0.2 | 8.88 | 9.34 | |
| 12 | 65/0.254 | 0.76 | 1.14 | 12.3±0.3 | 5.58 | 5.88 | |
| 10 | 104/0.254 | 1.14 | 1.52 | 16.9±0.4 | 3.51 | 3.70 | |
| 5 | 18 | 41/0.160 | 0.76 | 0.76 | 9.4±0.2 | 22.4 | 23.6 |
| 16 | 65/0.160 | 0.76 | 0.76 | 10.3±0.2 | 14.1 | 14.9 | |
| 14 | 41/0.254 | 0.76 | 0.76 | 11.4±0.2 | 8.88 | 9.34 | |
| 12 | 65/0.254 | 0.76 | 1.14 | 13.6±0.4 | 5.58 | 5.88 | |
| 10 | 104/0.254 | 1.14 | 1.52 | 19.5±0.4 | 3.51 | 3.70 | |
