No.of conductor 导体芯数 |

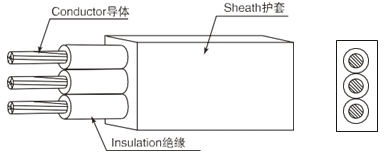

Conductor 导体 |
Insulation thickness 绝缘厚度 (mm) |
Sheath thickness 护套厚度 (mm) |
Overall diameter 完成外径 (mm) |
Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km |
||
|
Normal area 标称面积 (m㎡) |
Construction 结构 (NO./mm) |
||||||
| Bare | Tinned | ||||||
| 2 | 2x0.75 | 24/0.20 | 0.6 | 0.8 | 4.2±0.2x6.8±0.4 | 26.0 | 26.7 |
| 2x1.0 | 32/0.20 | 0.6 | 0.9 | 4.5±0.2x7.2±0.4 | 19.5 | 20.0 | |
| 2x1.5 | 30/0.25 | 0.8 | 1.0 | 5.4±0.2x8.9±0.4 | 13.3 | 13.7 | |
| 2x2.5 | 49/0.25 | 0.9 | 1.1 |
6.3±0.3x10.4±0.5 6.3±0.3x10.4±0.5 |
7.98 | 8.21 | |
| 2x4.0 | 56/0.30 | 1.0 | 1.2 |
7.3±0.3x12.2±0.6 .2±0.6 |
4.95 | 5.09 | |
| 2x6.0 | 84/0.30 | 1.0 | 1.3 |
8.1±0.3x13.6±0.6 x13.6±0.6 |
3.30 | 3.39 | |
| 3 | 3x0.75 | 24/0.20 | 0.6 | 0.9 |
4.4±0.2x9.4±0.4 9.4±0.4 |
26.0 | 26.7 |
| 3x1.0 | 32/0.20 | 0.6 | 0.9 | 4.6±0.2x9.8±0.4 | 19.5 | 20.0 | |
| 3x1.5 | 30/0.25 | 0.8 | 1.0 | 5.5±0.3x12.1±0.6 | 13.3 | 13.7 | |
| 3x2.5 | 49/0.25 | 0.9 | 1.1 | 6.3±0.3x14.3±0.7 | 7.98 | 8.21 | |
| 3x4.0 | 56/0.30 | 1.0 | 1.2 | 7.4±0.4x16.8±0.8 | 4.95 | 5.09 | |
| 3x6.0 | 84/0.30 | 1.0 | 1.3 |
8.3±0.5x19.0±0.8 ±0.5x19.0±0.8 |
3.30 | 3.39 | |
| 4 | 4x0.75 | 24/0.20 | 0.6 | 0.9 |
4.5±0.2x11.9±0.5 ±0.2x11.9±0.5 |
26.0 | 26.7 |
| 4x1.0 | 32/0.20 | 0.6 | 0.9 |
4.6±0.2x12.6±0.6 6±0.2x12.6±0.6 |
19.5 | 20.0 | |
| 4x1.5 | 30/0.25 | 0.8 | 1.0 |
5.8±0.3x15.8±0.8 8±0.3x15.8±0.8 |
13.3 | 13.7 | |
| 4x2.5 | 49/0.25 | 0.9 | 1.2 |
6.6±0.3x18.4±0.8 6.6±0.3x18.4±0.8 |
7.98 | 8.21 | |
| 4x4.0 | 56/0.30 | 1.0 | 1.3 |
7.6±0.4x21.8±1 7.6±0.4x21.8±1.0 |
4.95 | 5.09 | |
| 4x6.0 | 84/0.30 | 1.0 | 1.4 |
8.5±0.5x24.0± 8.5±0.5x24.0±1.0 |
3.30 | 3.39 | |
| 5 | 5x0.75 | 24/0.20 | 0.6 | 1.0 |
4.7±0.2x14.6±0.6 4.7±0.2x14.6±0.6 |
26.0 | 26.7 |
| 5x1.0 | 32/0.20 | 0.6 | 1.0 |
4.8±0.2x15.5±0.7 4.8±0.2x15.5±0.7 |
19.5 | 20.0 | |
| 5x1.5 | 30/0.25 | 0.8 | 1.1 |
5.8±0.3x18.8±0.8 5.8±0.3x18.8±0.8 |
13.3 | 13.7 | |
| 5x2.5 | 49/0.25 | 0.9 | 1.3 |
6.8±0.3x22.0±1.0 6.8±0.3x22.0±1.0 |
7.98 | 8.21 | |
| 5x4.0 | 56/0.30 | 1.0 | 1.4 |
7.8±0.4x26.0±1.0 7.8±0.4x26.0±1.0 |
4.95 | 5.09 | |
| 5x6.0 | 84/0.30 | 1.0 | 1.6 |
8.9±0.5x30.0±1.0 8.9±0.5x30.0±1.0 |
3.30 | 3.39 | |
| 6 | 6x0.75 | 24/0.20 | 0.6 | 1.0 |
4.7±0.2x16.9±0.8 4.7±0.2x16.9±0.8 |
26.0 | 26.7 |
| 6x1.0 | 32/0.20 | 0.6 | 1.1 |
5.0±0.3x18.0±0.8 5.0±0.3x18.0±0.8 |
19.5 | 20.0 | |
| 6x1.5 | 30/0.25 | 0.8 | 1.2 |
6.0±0.3x22.0±1.0 6.0±0.3x22.0±1.0 |
13.3 | 13.7 | |
| 6x2.5 | 49/0.25 | 0.9 | 1.4 |
7.0±0.4x26.0±1.0 7.0±0.4x26.0±1.0 |
7.98 | 8.21 | |
| 6x4.0 | 56/0.30 | 1.0 | 1.5 |
8.0±0.4x31.0±1.0 8.0±0.4x31.0±1.0 |
4.95 | 5.09 | |
| 6x6.0 | 84/0.30 | 1.0 | 1.7 | 9.0±0.4x35.0±1.0 | 3.30 | 3.39 | |
